Water-Damaged NVMe SSD Micro-Soldering Repair
Diagnosing and reviving a dead M.2 NVMe SSD affected by severe liquid damage by isolating a short-circuited SMD capacitor using microscopic diagnostics.
The Challenge (Liquid Damage)
A water-damaged laptop arrived for diagnostics following rain-water exposure. Upon inspection, heavy corrosion and residue had accumulated across internal components. While the main board was cleaned and restored, the laptop failed to detect the primary M.2 NVMe SSD. Given high replacement costs for high-capacity SSDs, component-level repair was prioritized.
Diagnostics & Micro-Soldering Solution
Placed the SSD under a precision microscope and performed multimeter continuity tests across the power rails.
- Identified a microscopic surface-mount device (SMD) bypass capacitor that had short-circuited due to liquid residue corrosion.
- Carefully removed the shorted capacitor using high-precision micro-soldering equipment.
- Cleared residual oxidation, tested line continuity, and verified full functionality upon system reconnection.
Significant Cost Saving for the Customer
Given that high-capacity replacement SSDs carried a hefty price tag during that period, this component-level micro-soldering fix successfully rescued the original drive, saving the customer significant money without compromising performance or data.

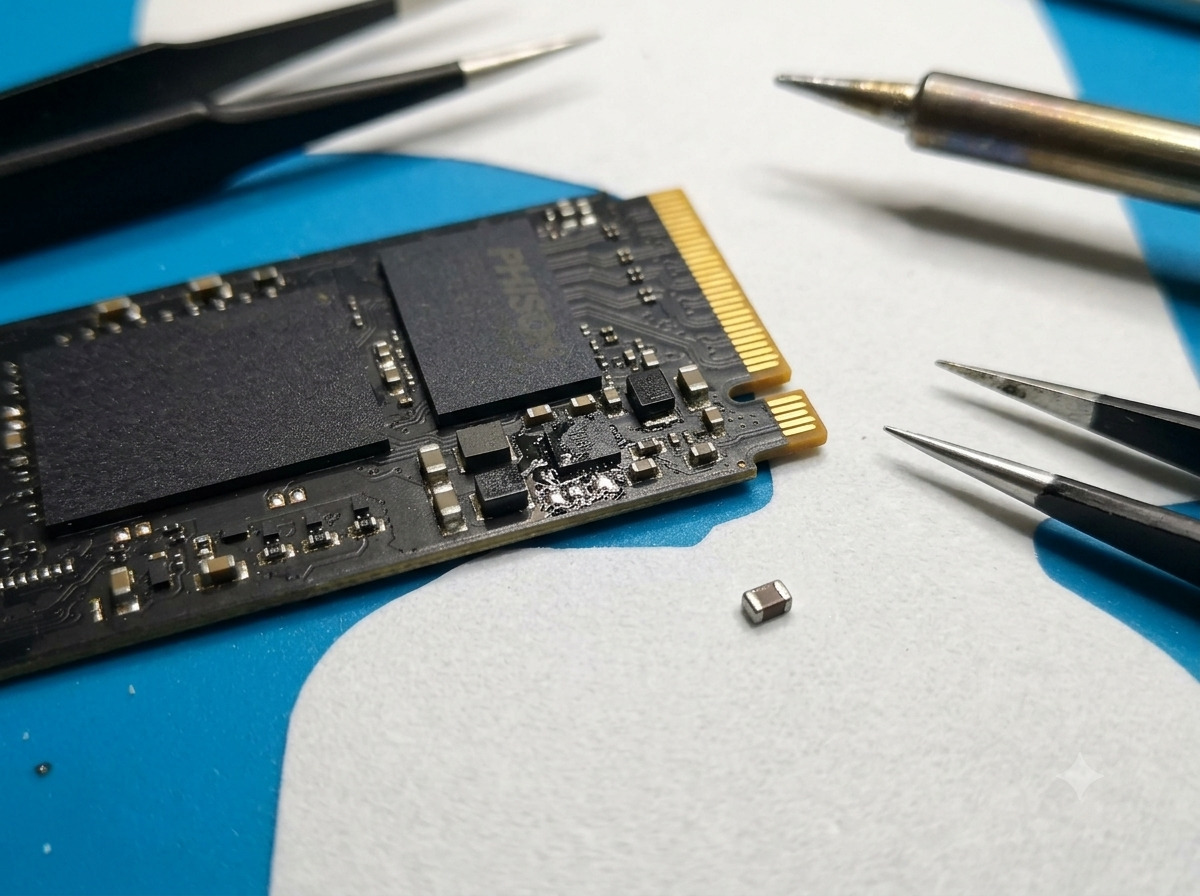

Microscopic Board View & Isolated Component
Representative AI-generated illustration showing microscope-assisted micro-soldering diagnostics.
